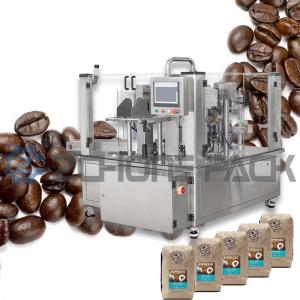

Coffee Bean Packaging Machine Small Granule Nut Dried Fruit Candy Pre-made Bag Packaging
A coffee bean packaging machine is a device specifically designed for automatically packaging coffee beans. It is often used in coffee production lines to efficiently pack coffee beans into bags and complete tasks such as sealing and labeling.
The working principle of a coffee bean packaging machine is similar to other automatic packaging machines. First, coffee beans are conveyed to the machine's feed port, usually through a vibrating device or conveyor belt to maintain continuous feeding. Then, the machine distributes a certain amount of coffee beans into each pre-made bag according to the preset packaging specifications and parameters. The filling area is equipped with a metering device that can be configured to ensure that the number of coffee beans in each packaging container is accurate.
After filling, the pre-made bag moves to the sealing area. In the sealing area, the machine uses heat sealing or other sealing technology to seal the packaging container to ensure the freshness and shelf life of the coffee beans.
Finally, the packaging container may pass through a label attachment area to automatically affix a packaging label, which may contain information about the coffee beans, such as coffee type, origin, roasting degree, etc.
The design and functions of the coffee bean packaging machine can be adjusted and customized according to production needs. Some advanced coffee bean packaging machines can also have additional functions, such as automatic cleaning system, automatic adjustment of packaging specifications, measurement accuracy monitoring, etc.
Overall, coffee bean packaging machines can improve production efficiency and packaging quality, enabling coffee producers to package coffee beans into final products more quickly and conveniently to meet market demand. If you are interested in coffee bean packaging machines, you can contact us.
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. |
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag |
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
| Measurement accuracy | *≤±0.5~1%, depending on the measuring equipment & materials. |
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) |
| Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM |
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1400kg | 1500kg |
| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. |
| Applicable scope | Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc |
(We can provide you with exclusive customized services according to your needs!)
